RLF3000 Red Light Panel

Dermfix® RLF3000 red light therapy panel

The powerful full-body panel for the highest demands

The Dermfix® RLF3000 red light therapy panel takes professional red light and near-infrared therapy to a new level – ideal for ambitious private users and smaller practices. With a height of 150 cm and a width of 40 cm, it offers a generous area for complete full-body red light therapy treatment.

This CE-certified premium model combines proven clinical wavelengths with the latest developments: from classic red and near-infrared light (630 nm, 660 nm, 810 nm, 830 nm, 850 nm) to 480 nm blue for antibacterial applications and 1060 nm NIR for deeper tissue layers. Each of the 7 wavelengths can be precisely dimmed from 0 to 100%. For even more customised applications, NIR pulse options from 0–9999 Hz are available.

With state-of-the-art dual LED technology and 600 flicker-free 5-watt high-performance diodes, the RLF3000 guarantees uniform, powerful light coverage – perfect for efficient and comfortable therapy.

Operation is very simple: select your settings directly via the intuitive touch panel with timer function or use the portable remote control with 11 preset modes. For particularly demanding users, there is the option of saving three custom programmes.

The RLF3000 also sets standards in terms of durability. The robust metal housing ensures a long service life, and longer power cables are available on request for even greater flexibility.

In short: the Dermfix® RLF3000 red light therapy panel combines 7 independently controllable wavelengths, free intensity control, precise NIR pulse options, state-of-the-art flicker-free dual LEDs, convenient operation via touchscreen or remote control, the option of individual programming and a high-quality, robust design – all at a price-performance ratio that is unbeatable for a panel of this size.

Full Specifications:

Technical Data RLF3000
Product Name: Dermfix RLF3000
LED Lamps: 600 x 5 Watt Dual LEDS
LED Lifespan: 50,000 hours
LEDs Dimmable: 0%-100%
Beam Angle: 30 Degree
Cooling Fans: 8 pieces

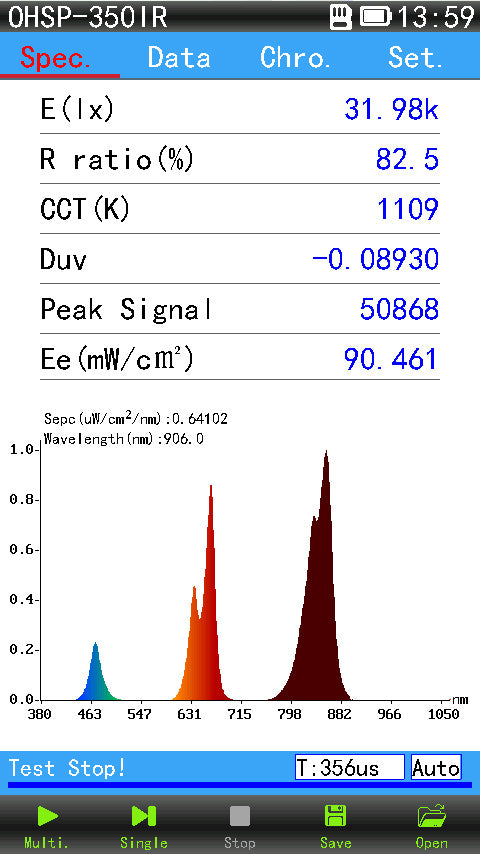

Wavelengths Available: 480nm, 630nm, 660nm, 810nm, 830nm, 850nm, 1060nm
Timer: 1 to 30 minutes adjustable
Pulsing: Each NIR wavelength (0-9999hz)
Power Supply: 100 to 230 volts AC at 50Hz to 60Hz
Power Consumption: 935 Watts
Amperage: 4.29 Amps @ 220V or 9.32 Amps @ 110V
Power supply cable: Approx 3 metres (9 feet)
Dimensions: 150cm (59 inches) x 42cm (16.5 inches) x 6.6cm (2.6 inches)
Max Temperature Range: -20° Celsius (-4 °Fahrenheit) to +60° Celsius (140 °Fahrenheit)
Weight: 21.5 kilos (47 lbs)
Type of operation: Continuous
Design Life: 5 years
Production: Made in China
Atmospheric Pressure: 70 kPa to 106 kPa
IP Rating: IP20
EMF Emissions: Negligible
CE Approved & Tested
